VTOP series
Voltage Transformers
Outdoor voltage transformers for metering and protection on 11kV, 22kV and 33kV networks, commonly supplied alongside recloser installations.
A voltage transformer steps network voltage down to a standard secondary level so metering and protection equipment can measure it safely. On a recloser installation it does two jobs at once: it gives the controller its voltage reference, and it supplies the control cabinet itself.

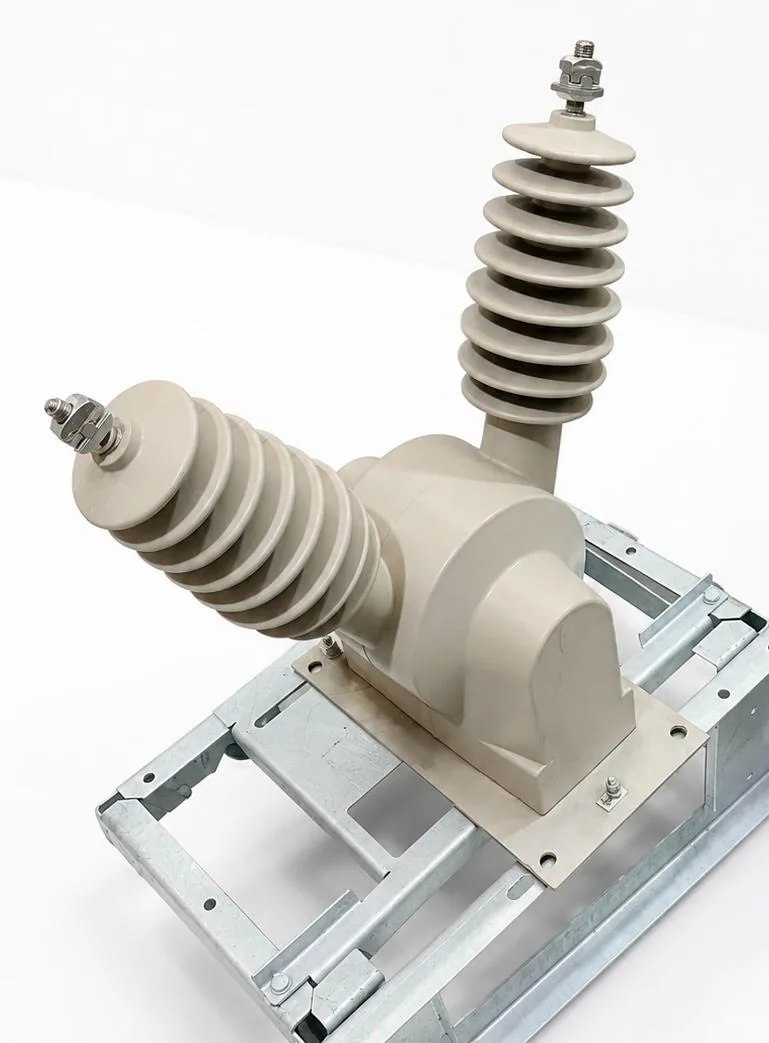

The VTOP series is built for outdoor pole and structure mounting on 11kV, 22kV and 33kV networks. The cast resin body is rated for heavy pollution, which is what coastal and industrial lines in South Africa actually need.
Specifications are confirmed per order. Burden, accuracy class and voltage factor all depend on what the secondary is feeding, so tell us the application and we will confirm the unit.
Ratings
Outdoor voltage transformers for metering and protection on 11kV, 22kV and 33kV networks.
| Parameter | VTOP-2-15 | VTOP-2-25 | VTOP-2-36 |
|---|---|---|---|
| Network | 11 kV | 22 kV | 33 kV |
| Rated transformer ratio | 11000 / 220 V | 22000 / 110 V | 33000 / 110 V |
| Maximum operating voltage | 15 kV | 25 kV | 36 kV |
| Lightning impulse withstand | 95 kV | 125 kV | 170 kV |
| Power frequency withstand, 1 min | 35 kV | 50 kV | 70 kV |
| Accuracy class | 3 | 3 | 3 |
| Rated burden | 200 VA | 200 VA | 200 VA |
| Maximum power | 600 VA | 400 VA | 800 VA |
| Voltage factor | 1.9 Un | 1.2 Un | 1.2 Un |
| Rated frequency | 50 (60) Hz | 50 (60) Hz | 50 (60) Hz |
Figures taken from factory routine test reports issued under IEC 61869-1 and IEC 61869-3. Ratings are confirmed per unit at time of order, so please confirm the specification for your application before ordering.
Where they are used
-
Recloser installations
Commonly supplied alongside an auto recloser to provide the control supply and the voltage measurement reference.
-
Metering
Stepping network voltage down to a standard 110 V or 220 V secondary for metering equipment.
-
Protection schemes
Providing the voltage input for protection relays and network monitoring.
-
Outdoor mounting
Built for outdoor pole or structure mounting, not for indoor panel installation.
-
Tested to IEC 61869
Manufactured and routine tested against IEC 61869-1 and IEC 61869-3.
-
Supplied with test certificates
Each unit ships with its factory routine test report covering ratio, accuracy class and withstand testing.
Ordering
Voltage transformer specifications are confirmed per order, including burden, accuracy class and voltage factor. Tell us the network voltage, what the secondary needs to feed, and whether the unit is for metering, protection or both, and we will confirm the right specification and availability.
